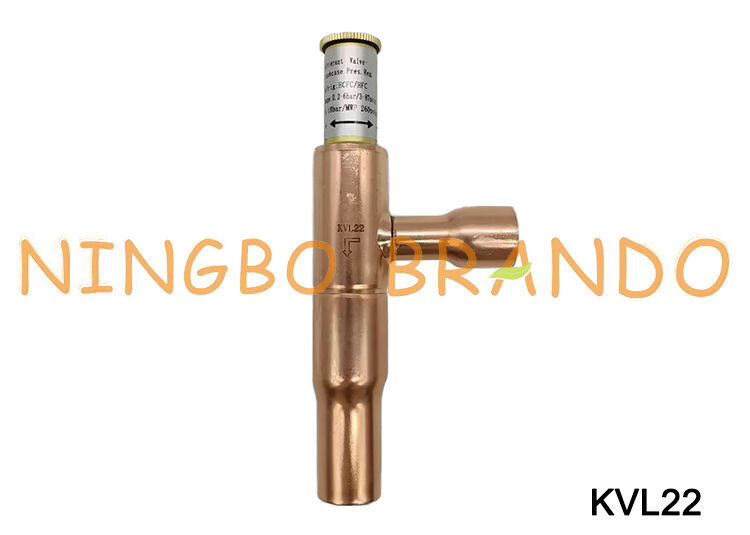

Name: Danfoss Type 034L0045 Crankcase Pressure Regulator KVL 22
Brand: Ningbo Brando Hardware Co., Ltd
SKU: KVL 22
Price: 65.00 USD
Availability: InStock

Aperçu Produits Vanne électromagnétique de réfrigération

Danfoss Type 034L0045 Crankcase Pressure Regulator KVL 22

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	BRANDO
Certification:	None
Numéro de modèle:	KVL 22

Conditions de paiement et expédition:

Quantité de commande min:	5 pièces
Prix:	Négociable
Détails d'emballage:	Boîte intérieure, carton, palette
Délai de livraison:	Négociation
Conditions de paiement:	T/T, Western Union, MoneyGram
Capacité d'approvisionnement:	100 000 pièces par mois

Contact

Description de produit détaillée

Nom du produit:	Régulateur de pression du carter	Taille du port:	7/8''
Connexion:	Soudure (ODF)	Gamme réglementaire:	barre 0 à 6, prémontant = la barre 2
Pression de service maximale:	14 bar	Plage de températures moyennes:	-200 à +150℃
Réfrigérant:	CFC, HCFC et HFC	P-bande maximum:	barre 2,0
Mettre en évidence:	Crankcase pressure regulator KVL 22 , Danfoss KVL 22 , Danfoss 034L0045 KVL 22

Danfoss Type 034L0045 Crankcase Pressure Regulator KVL 22

A CPR or crankcase pressure regulator is nothing more than a pressure reducing valve. When installed on a compressor suction inlet and properly adjusted, the CPR will prevent the compressor suction pressure from ever rising above the CPR's setting. The CPR will help prevent refrigeration compressor from overloading during startup on refrigeration systems that may experience heavy load conditions such as a freezer after a defrost cycle.

Product video of KVL 12 Crankcase Pressure Regulator:

Technical Data of KVL Crankcase Pressure Regulator:

Refrigerants	CFC, HCFC, HFC
Regulation Range	0 to 6 bar, Factory Setting = 2 bar
Max Working Pressure	14 bar
Max Test Pressure	KVL 12-22: 28 bar KVL 28-35: 25.6 bar
Medium Temperature Range	-200 to +150℃
Max P-band	KVL 12-22: 2.0 bar KVL 28-35: 1.5 bar

Ordering Code of KVL Crankcase Pressure Regulator:

Model	Rated Capacity (kW)				Flare	Code no	Solder	Code no
Model	R22	R134a	R404A/R507	R407C	Flare	Code no	Solder	Code no
KVL 12	7.1	5.3	6.3	6.5	1/2''	034L0041	1/2''	034L0043
KVL 15	7.1	5.3	6.3	6.5	5/8''	034L0042	5/8''	034L0049
KVL 22	7.1	5.3	6.3	6.5			7/8''	034L0045
KVL 28	17.8	13.2	15.9	16.4			1 1/8''	034L0046
KVL 35	17.8	13.2	15.9	16.4			1 3/8''	034L0052

Dimension of KVL Crankcase Pressure Regulator:

Model	Connection		H1	H2	B1	C Solder	φ D
Model	Flare	Solder	H1	H2	B1	C Solder	φ D
KVL 12	1/2''	1/2''	7.047''	3.898''	2.520''	0.375''	1.181''
KVL 15	5/8''	5/8''	7.047''	3.898''	2.520''	0.5''	1.181''
KVL 22		7/8''	7.047''	3.898''	2.520''	0.625''	1.181''
KVL 28		1 1/8''	10.197''	5.945''	4.134''	0.875''	1.693''
KVL 35		1 3/8''	10.197''	5.945''	4.134''	1''	1.693''
