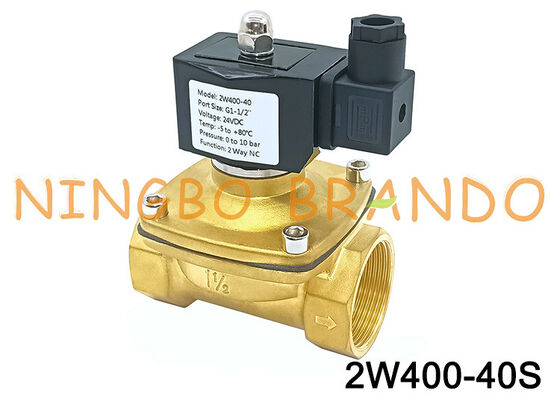

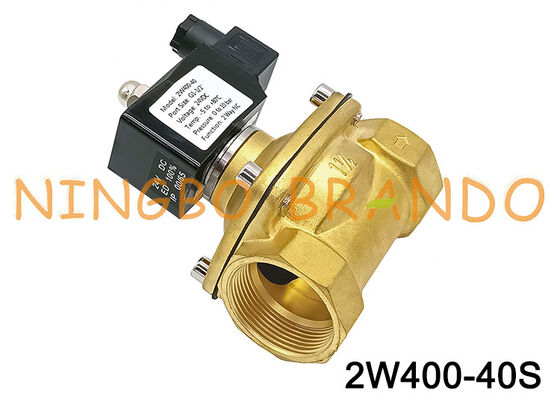

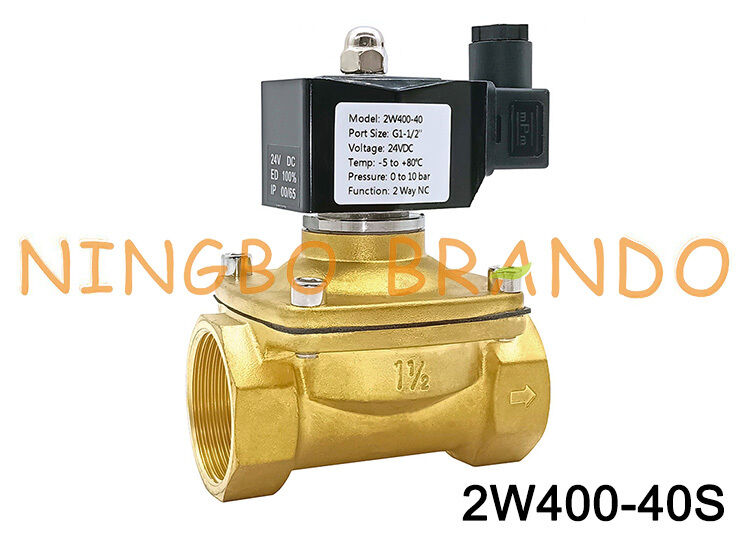

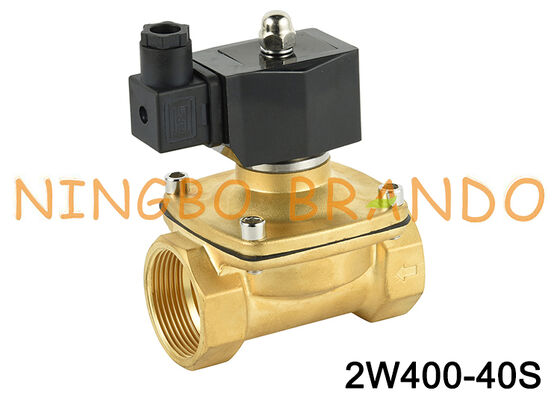

2W400-40 1.5'' Normally Closed Brass Solenoid Valve 24V 110V 220V
Product Features:
1. Function: 2 Way Normally Closed, 2 Way Normally Open
2. Operation: Direct Lifting Diaphragm
3. Port Sizes: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', etc;
4. Orifice Sizes: 15mm, 20mm, 25mm, 35mm, 40mm, 50mm
5. Working Medium: Water, Air, Gas, Oil, etc.
6. Valve Body Material: Brass, Stainless Steel
7. Valve Seal Material: NBR, EPDM, FKM;
8. Solenoid Coil Voltages: 12VDC 24VDC, 24VAC, 110VAC, 220VAC, etc;
9. Solenoid Coil Protection Class: IP65, IP67, Ex Proof, etc;
Technical Data of Solenoid Valve:
|
Model
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Port Size
|
|
|
|
|
|
|
|
|
Orifice Size
|
|
|
|
|
|
|
|
Cv Value
|
|
|
|
|
|
|
|
Medium
|
|
|
Action
|
|
|
Function
|
2 Way, Normally Closed (NC), Normally Open (NO)
|
|
Viscocity
|
|
|
Pressure
|
Air: (1 to 1MPa), Water (0 to 0.7MPa), Oil (0 to 0.9MPa), Normally Open (0 to 0.8MPa)
|
|
Temperature
|
NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃, Silicone: -15 to +150℃
|
|
Body Material
|
|
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Coil Type
|
Waterproof Coil, Round Coil, Square Coil, etc.
|
Main Dimension of Solenoid Valve:
|
Model
|
|
|
|
|
|
2W160-10
|
|
|
|
|
|
2W160-10-NO
|
|
|
2W160-15
|
|
|
|
|
|
2W160-15-NO
|
|
|
2W200-20
|
|
|
|
|
|
2W200-20-NO
|
|
|
2W250-25
|
|
|
|
|
|
2W250-25-NO
|
|
|
2W350-35
|
|
|
|
|
|
2W350-35-NO
|
|
|
2W400-40
|
|
|
|
|
|
2W400-40-NO
|
|
|
2W500-50
|
|
|
|
|
|
2W500-50-NO
|
|
Solenoid Valve Assembly Display:
