| Lieu d'origine: | La Chine, Ningbo |
| Nom de marque: | BRANDO |
| Certification: | CE, ISO |
| Numéro de modèle: | R50 |
| Quantité de commande min: | 80 pièces |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Boîte, carton, palette |
| Délai de livraison: | 4 à 7 jours ouvrables |
| Conditions de paiement: | L/C, T/T, Western Union et Paypal |
| Capacité d'approvisionnement: | 200000 pièces par mois |
| Nom du produit: | Vibrateur pneumatique à rouleaux | Fréquence nominale: | 10 000 à 36 000 tr/min |
|---|---|---|---|
| Force centrifuge: | 1070 à 12500 N | Température de fonctionnement: | Jusqu'à 150 °C |
| Longueur: | 86 mm | Largeur: | 29mm |
| Taille: | 50 mm | Taille du port: | 1/8'' |
| Mettre en évidence: | Findeva Type Pneumatic Roller Vibrator,R-50 Pneumatic Roller Vibrator,Findeva Type R-50 Roller Vibrator |
||

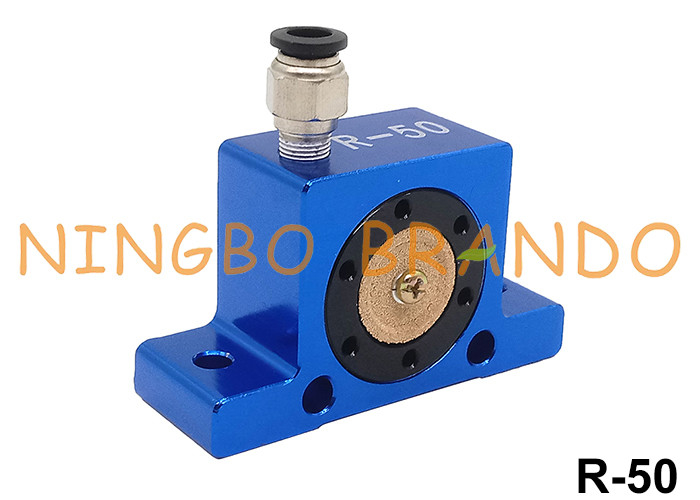

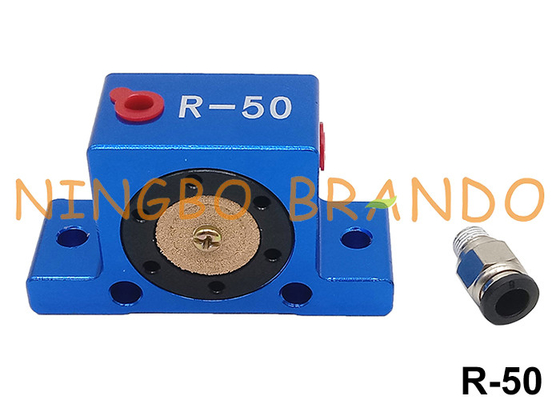

R-50 Findeva Type Pneumatic Roller Vibrator For Industrial Hopper
R Series Pneumatic Roller Vibrators are durable, compact, lightweight, and simple in design. They are small enough to fit in your hand, but still capable of delivering very high centrifugal forces. Construction features a lightweight machined aluminum body, precision steel roller, and special high impact plastic endplates. For easy mounting, the body has two sets of holes; one set for horizontal mounting, the other for vertical. Air is supplied to the unit through one of two inlet ports, which are drilled at right angles to one another in the body. This design feature allows easy access to air inlets in various mounting positions.
Main Dimension of R Series Pneumatic Roller Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
G
(mm)
|
H
(Thread)
|
|
R-50
|
50
|
29
|
86
|
68
|
12
|
7
|
40
|
G1/8''
|
|
R-65
|
65
|
37
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
R-80
|
80
|
43
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
R-100
|
100
|
52
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
|
R-120
|
120
|
77
|
194
|
152
|
24
|
17
|
-
|
G3/8''
|
Technical Data of R Series Pneumatic Roller Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
R-50
|
25.0
|
35.0
|
36.0
|
1070
|
2920
|
4220
|
100
|
145
|
195
|
|
R-65
|
19.0
|
21.0
|
26.0
|
2730
|
4830
|
6120
|
200
|
300
|
400
|
|
R-80
|
15.5
|
18.5
|
19.0
|
3000
|
6090
|
7450
|
290
|
430
|
570
|
|
R-100
|
11.0
|
14.0
|
16.0
|
3750
|
6750
|
8900
|
370
|
550
|
730
|
|
R-120
|
10.0
|
11.5
|
12.5
|
8000
|
10000
|
12500
|
500
|
730
|
970
|
Construction of R Series Pneumatic Roller Vibrators:
