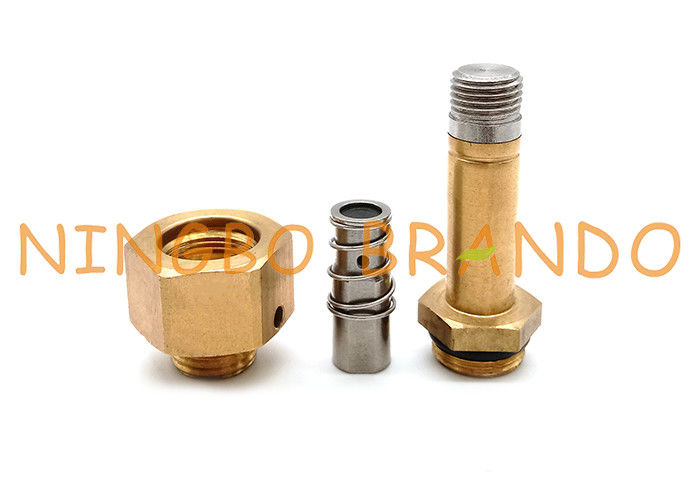

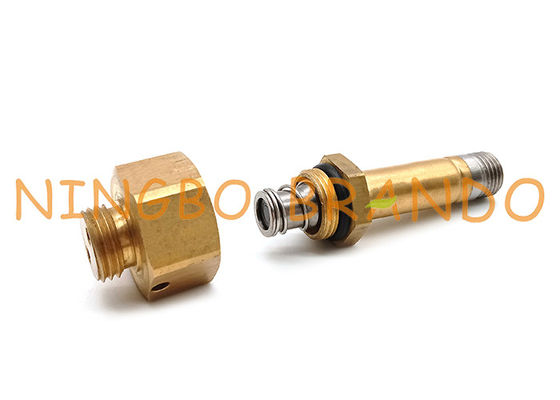

Le type du système 10 P10 Autel a intégré Pulse pilote Jet Valve Armature Plunger

SYS 10 P10 Autel Type Intergrated Pilot Pulse Jet Valve Armature Plunger

For each of them Autel supplies models with different measures of connection from ¾ to 3”. All Autel’s models are available both with integrated pilot and with control through remote pilot; they are marked by high performance features. In fact, all Autel’s valves are characterized by a quick opening which allows in a short time a high jet and a reduced air consumption.

The Threaded Connection series is a range of electrovalves used for cleaning filter elements in air filtration system. The characteristic of this model is the female threaded connection (both in output and input). The quick opening with a great volume of air allows an high jet in a short time and a reduced air consumption. All That is achieved from a deep studying of internal geometrical characteristics and from a technological research on diaphragm. This guarantees rapid opening-closing and a working for over a million of shots.

Dimension of BAPC210027744 Armature Assembly:

Technical Data:

Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly,

4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly,

7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
